Edision HDMI Modulator 3in1 Pro
Brand: Edision
Rating : 5 - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 124,00 |
| Check Shipping price |
EDISION HDMI MODULATOR 3 in 1 PRO
This PRO HDMI modulator 3in1 can modulate any signal input from any HDMI source (Satellite Receiver, TV Box, CCTV, DVD, Digital Signage, etc.) can be converted up to FULL HD 1080p 60fps Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4 signal output, in VHF or UHF band.Digital single channel HDMI Modulator with HDMI loop-through function, embedded IR Transmitter and with RF-IN mixing INPUT Produces excellent quality signal output, combined with reliable, easy and fast configuration with the LCD Display and stable operation in any installation scheme. As an extra and optional accessory, an IR CONTROL over COAX system can be connected, for easy and practical IR Rx control between the 2 TV points, through the coaxial cable (EDI-Rx)
Technical features:
- Digital single-channel HDMI Modulator to DVB-T, DVB-C or ISDB-T with HDMI loop-through & IR Tx
- INPUT signal: 1x HDMI v1.4a
- RF OUTPUT signal: 1 x Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4
- Frequency Range DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
- Frequency Range ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
- Frequency Range DVB-C: 47-862 MHz
- With RF loop-through
- With HDMI loop-through
- IR control over coaxial ready, through the embedded IR Transmitter
- High Video Resolution up to FULL HD 1080p 60FPS
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER more than 35dB
- Symbol Rate: up to 31.668 MBPS
- Bandwidth: 6MHZ, 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: 800MHz 32Bit ARM9 CPU
- Memory DDRIII 16bit 1GBit/s (Embedded) & NOR Flash 32Mbit
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB (CFG)
- Software Upgrade by USB

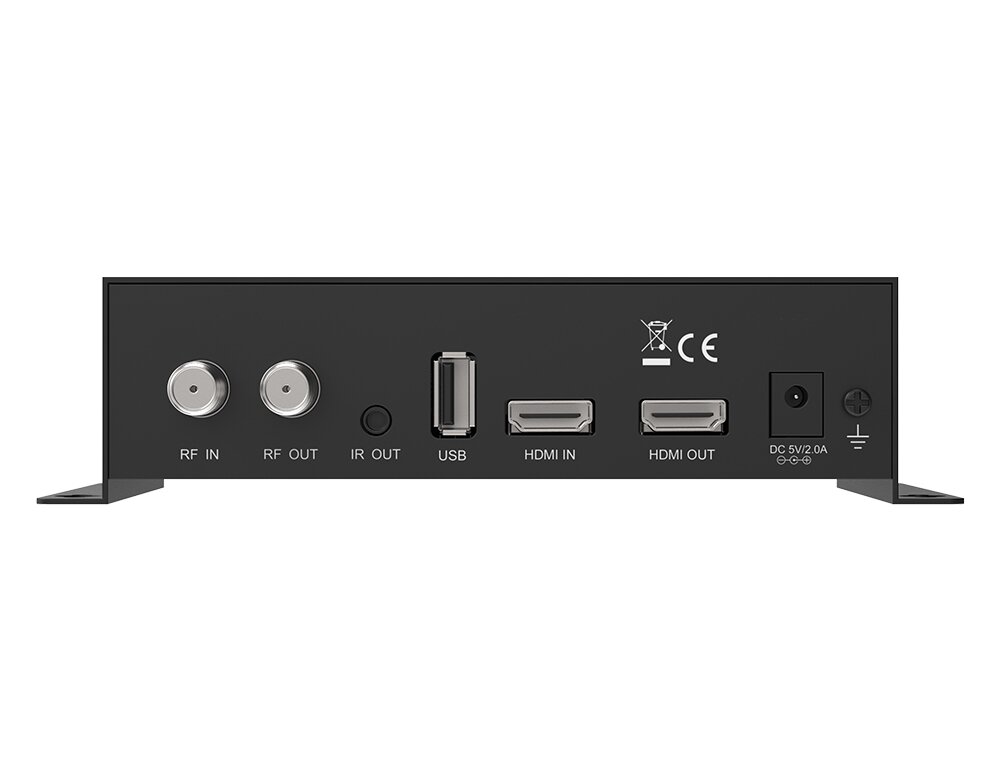

- Ports: RF IN, RF OUT, IR OUT, USB, HDMI IN, HDMI OUT, DC 5V/2.0A, GROUND
- LCD Display with Standby function
General:
- Power Supply: 100 - 240 AC 50/60Hz
- Input Voltage: DC 5V 2.0A
- Power Consumption: max. 10.0W
- Operating Temperature: 0°C ... +50°C
- Storage Temperature: -20°C ... +70°C
- Humidity Range: 10% ... 85% RH, non-condensing
- Dimensions: 164x106x41 mm
Package includes:
- HDMI Modulator 3in1 pro
- Jack to IR Tx cable
- 5V/2.0A EU/UK universal Power Supply Unit
- Upat and mounting screws
- User Manual GR/EN/DE/ES/IT/FR
If you need IR control over Coax, have to order EDI-Rx Extendsion below.
Shipping worldwide, next day delivery via EU !
