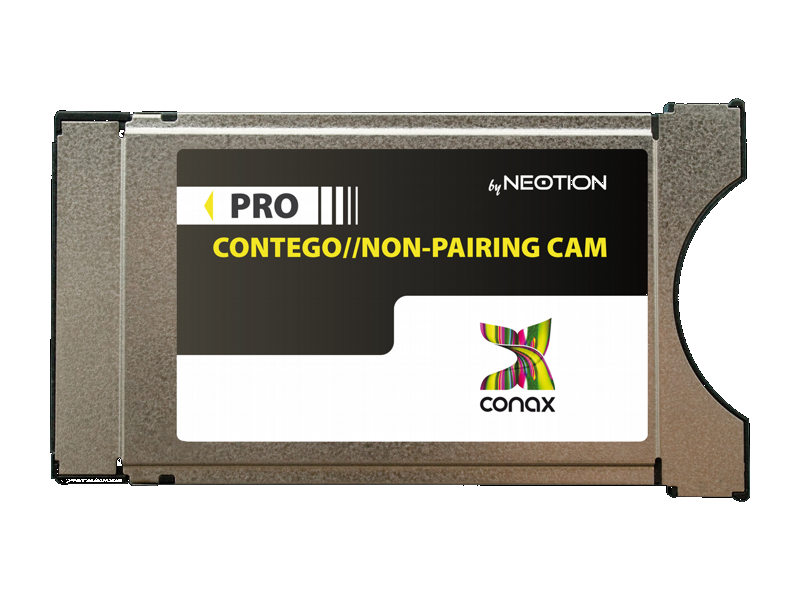

Neotion Conax PRO 8
Brand: Neotion
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 299,00 |
| Check Shipping price |
Neotion conax PROfessional CA Module, 8CH
POWERED BY NEOTION IN-HOUSE SILICON TECHNOLOGY, THE NEOTION CONAX PRO CAM ENABLES PROFESSIONAL HEAD-ENDS EQUIPMENTS TO DECODE TV PROGRAMS SCRAMBLED WITH CONDITIONAL ACCESS SYSTEM CONAX™.
INSERTED IN THE COMMON INTERFACE (DVB-CI) SLOT, NEOTION PRO CAM ALLOWS PROFESSIONAL CUSTOMERS OF DIGITAL TV TO RECEIVE AND DESCRAMBLE UP TO 8 OR MORE (ACCORDING TO THE SERVICES CONFIGURATION) SERVICES SIMULTANEOUSLY.
TECHNICAL SPECIFICATION
STREAM TYPE SUPPORTED:
- MPEG-2, MPEG-4, SD AND HD
- ALL AUDIO TYPE (MPEG2, AAC, HE AAC, DOLBY, ETC)
- PRIVATE DATA
- TELETEXT
INTERFACING:
- PLUG-AND-PLAY & USER FRIENDLY
- DVB-CI HIGH LEVEL MMI COMPLIANT
LANGUAGES: ENGLISH (MORE ON DEMAND)
STANDARDS:
- DVB COMMON INTERFACE STANDARD AND PCMCIA ISO/IEC EN50221 COMPLIANT
- CI PLUS SPECIFICATION V1.2 COMPLIANT
- SMART CARD: FULL ISO 7816-3 (T=0, T=14) COMPLIANT
- ROHS COMPLIANT DIRECTIVE 2002/95/EC
OTA:
- UPGRADE FROM MPEG TRANSPORT STREAM OVER THE AIR
- DVB SSU COMPLIANT
MEMORY:
- ON CHIP EDRAM: 16MBITS
- OFF CHIP SDRAM: 128MBITS
- OFF CHIP SERIAL FLASH: 64MBITS
SECURITY:
- CONAX™ CONDITIONAL ACCESS SYSTEM EMBEDDED (FOR MPEG-2 OR MPEG-4, SD & HD PAY TV SERVICES)
- UNIQUE AND PROTECTED AUTHENTICATION ID
- HARDWARE CRYPTO ACCELERATORS
- SECURE CHIPSET FOR APPLICATION SUCH AS PAIRING (ANTI CARD SHARING / ANTI CONTROL WORD SHARING)
- ON CHIP OTP
- DUAL MODE: SECURE CHIPSET OR NO SECURE CHIPSET MODE ACCORDING TO THE OPERATOR BROADCAST SYSTEM SETTINGS.
PROCESSING:
- ARM7TM @ 126MHZ
- 8K I-CACHE AND 8K D-CACHE
- 8 DVB-CSA DESCRAMBLER
SIZE, WEIGHT & POWER SUPPLY:
- PCMCIA TYPE II
- 46G
- 5 VOLTS, FROM ANY DVB-CI HOST
Shipping worldwide from EU stock, next day delivery !
